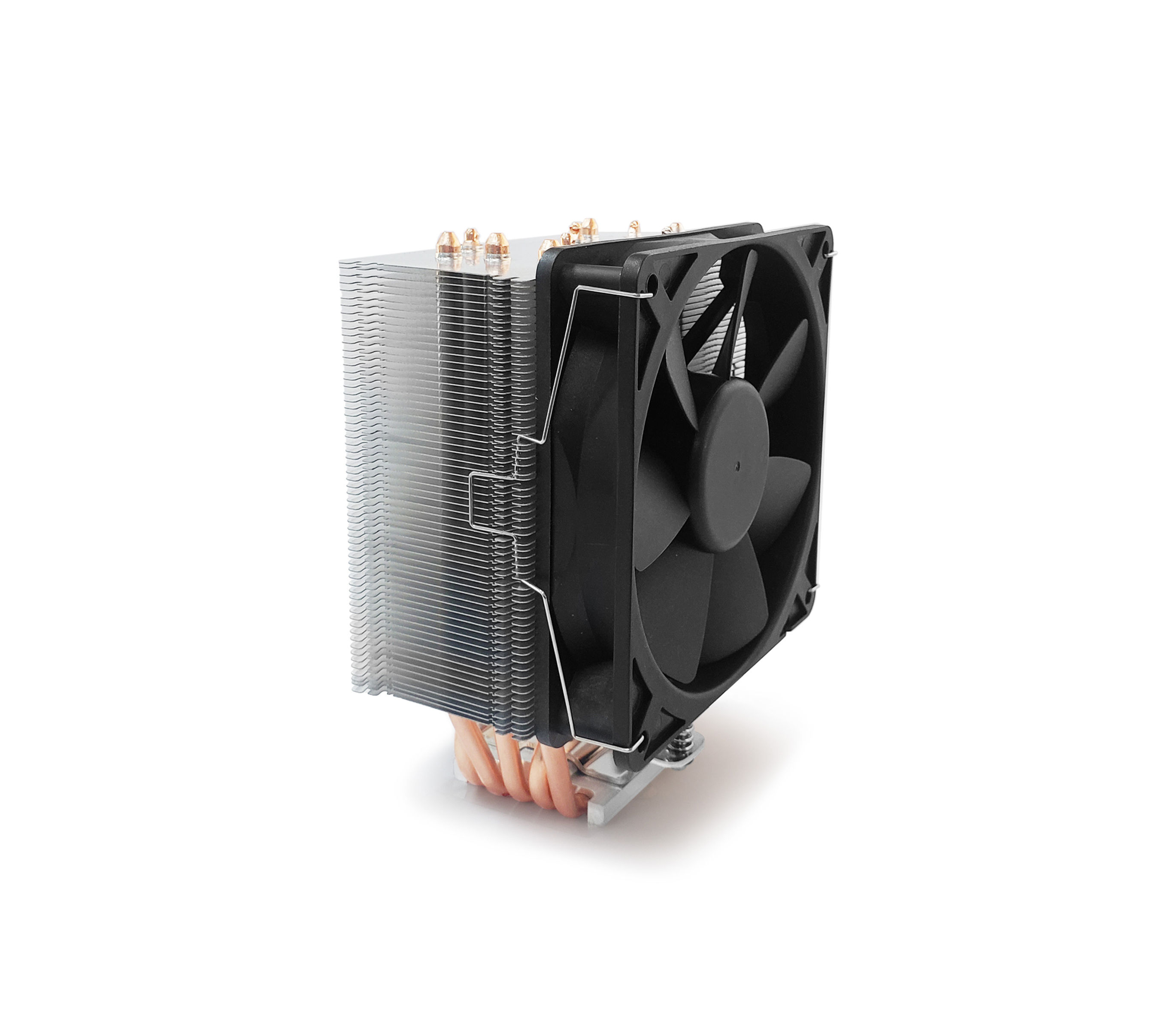

W3

W3

_______________________________



CPU SUPPORT
Ampere® Altra® Family



CPU SOCKET

LGA4926



APPLICATION
4U



MAXIMUM POWER

250 W

_______________________________

CPU Support

Ampere® Altra® Family

CPU Socket

LGA 4926

Solution

4U/Tower PC

Dimension

141.1 x 84.0 x 72.0 mm

Weight

706 ± 10 g

Material

Aluminum + Direct Contact Heat Pipe Heatsink Base + Aluminum Fins

Fan Model

LE12250013

Fan Dimension

120 x 120 x 25 mm

Bearing

Double Ball

Rated Voltage

12V

Rated Speed

At Duty Cycle 0~20%: 600 ± 200 RPM

At Duty Cycle 50%: 1500 ± 200 RPM

At Duty Cycle 100%: 2200 ± 10% RPM

Input Power

At Duty Cycle 0~20%: 0.6 W

At Duty Cycle 50%: 1.2 W

At Duty Cycle 100%: 2.4 W

Maximum Airflow

At Duty Cycle 0~20%: 21.2 CFM

At Duty Cycle 50%: 57.5 CFM

At Duty Cycle 100%: 84.3 CFM

Rated Static Pressure

At Duty Cycle 0~20%: 0.24 mm-H2O

At Duty Cycle 50%: 1.76 mm-H2O

At Duty Cycle 100%: 3.78 mm-H2O

Acoustical Noise

At Duty Cycle 0~20%: 14.26 dBA

At Duty Cycle 50%: 27.7 dBA

At Duty Cycle 100%: 36.1 dBA

Lead Wire Pin Out

Pin#1- Black(-)

Pin#2- Yellow(+)

Pin#3- Green(Tachometer/ Signal Output)

Pin#4- Blue (PWM)

Thermal Grease

Shin-Etsu X23-8079-2 Pre-Printed

Lead Wire Pin Out

Pin#1- Black(-)

Pin#2- Black(+)

Pin#3- Black(Tachometer/ Signal Output)

Pin#4- Black(PWM)

*All product specifications and product images are subject to change without notice.
