S7

S7

Recommend for Intel® Sapphire Rapids Processor, Socket FCLGA 4677, Active Cooler for 1U Server and up, Copper Heatsink with Vapor Chamber Base, Support 205 Watts CPU Power Heat Dissipation.

Note:
Dynatron S2, S3, S4, S5, S5R1, S6, and S7 each come with the E1A and E1B Package Carrier. The E1C Package Carrier is not included but is available upon request.


CPU Support

Intel

CPU Socket

FCLGA 4677

Solution

1U Server and Up

Dimensions

118.6 x 80.5 x 27.4 mm

Weight

424.6 g

Material

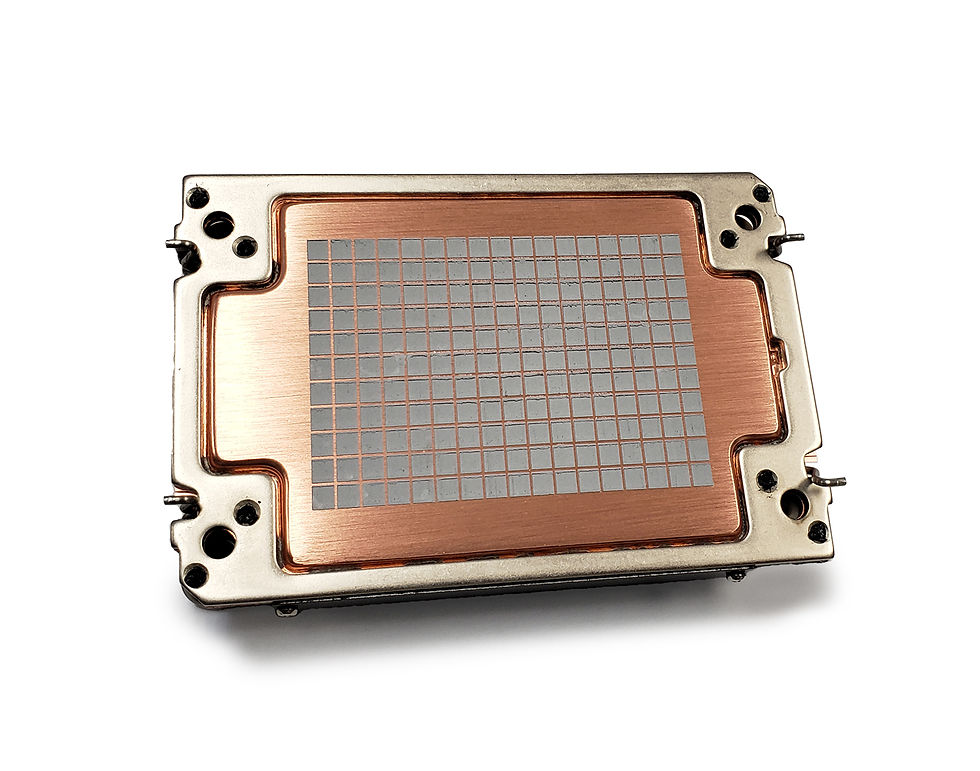

Copper 1100 Heatsink with Vapor Chamber Base

Fan Dimension

80 x 13 mm

Speed

At Duty Cycle 0~20%: 1900 ± 200 RPM
At Duty Cycle 50%: 4800 ± 10% RPM
At Duty Cycle 100%: 8700 ± 10% RPM

Rated Voltage

12V

Bearing

Double Ball

Power

At Duty Cycle 20%: 1.08 W
At Duty Cycle 50%: 4.7 W
At Duty Cycle 100%: 23.45 W

Air Flow

At Duty Cycle 20%: 4.0 CFM
At Duty Cycle 50%: 10.39 CFM
At Duty Cycle 100%: 18.97 CFM

Noise Level

At Duty Cycle 20%: 23.3 dBA
At Duty Cycle 50%: 43.5 dBA
At Duty Cycle 100%: 62.2 dBA

Air Pressure

At Duty Cycle 20%: 3.15 mm-H2O
At Duty Cycle 50%: 21.07 mm-H2O
At Duty Cycle 100%: 77.16 mm-H2O

Lead Wire Pin Out

Pin#1-Black(-)
Pin#2- Yellow(+)
Pin#3- Green(Tachometer/ Signal Output)
Pin#4- Blue (PWM)

Thermal Grease

Shin-Etsu 7762 Pre-printed

*All product specifications and product images are subject to change without notice.
