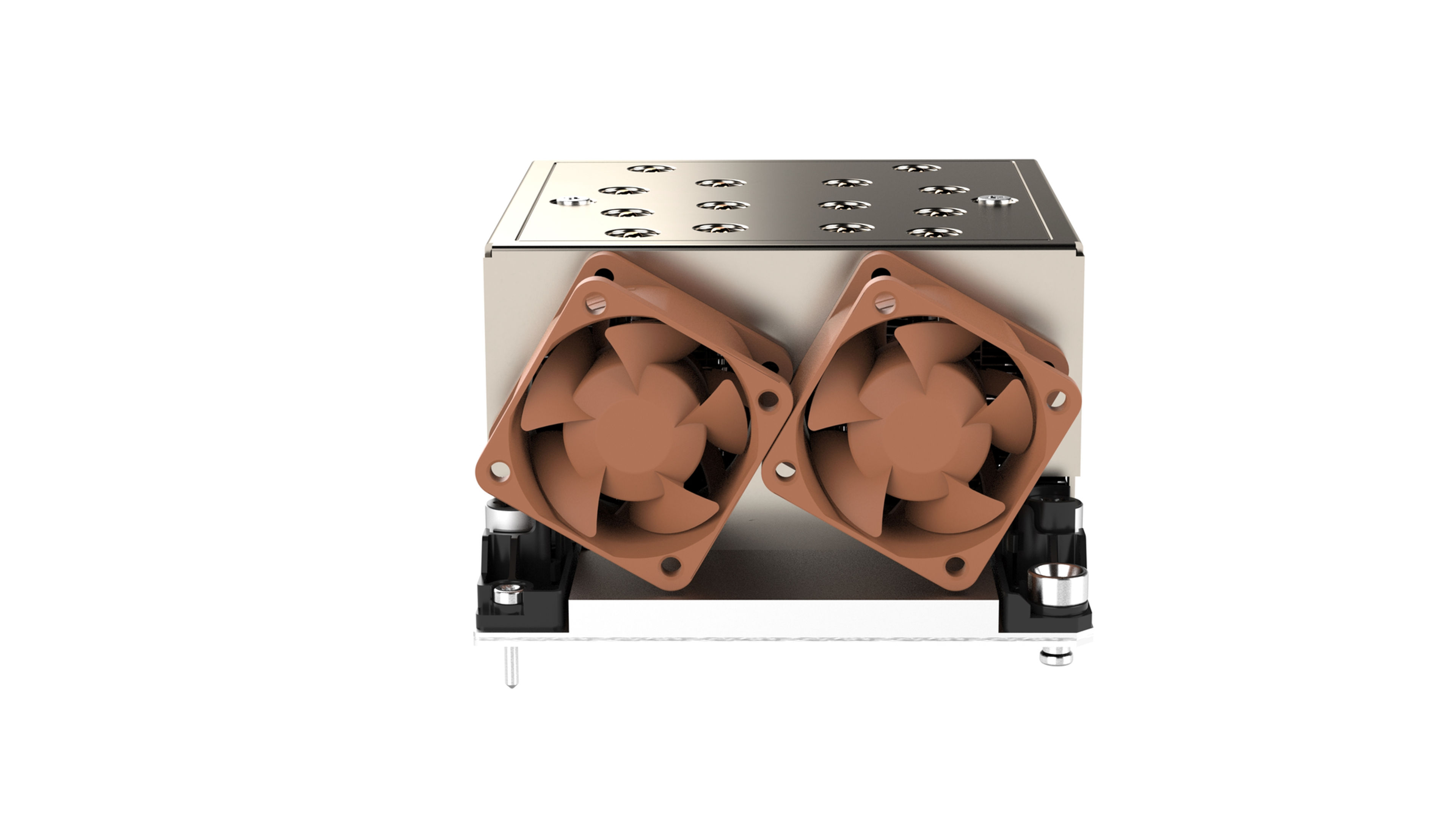

C26

CPU Support

Intel® Diamond Rapids

CPU Socket

LGA 9324

Screw Type

TBD

Installation Torque

TBD

Solution

2U

Dimensions

153.5 x 101.5 x 65.5 mm

Weight

TBD

Material

Aluminum Fin + Heat pipes + Copper Heat Spreader Embedded 3D Vapor Chamber Heatsink Base

Fan Dimension

40 x 40 x 28 mm

Speed

At Duty Cycle 0~20%: 3300± 200 RPM

At Duty Cycle 50%: 15000± 10% RPM

At Duty Cycle 100%: 26000±10% RPM

Bearing

Double Ball

Rated Voltage

12V

Power

At Duty Cycle 0~20%: 0.72 W

At Duty Cycle 50%: 6 W

At Duty Cycle 100%: 22.8 W

Air Flow

At Duty Cycle 0~20%: 5.76 CFM

At Duty Cycle 50%: 26.19 CFM

At Duty Cycle 100%: 45.39 CFM

Noise Level

At Duty Cycle 0~20%: 24.77 dBA

At Duty Cycle 50%: 57.65 dBA

At Duty Cycle 100%: 69.59 dBA

Air Pressure

At Duty Cycle 0~20%: 2.13 mm-H2O

At Duty Cycle 50%: 43.91 mm-H2O

At Duty Cycle 100%: 131.91 mm-H2O

Lead Wire Pin Out

Pin#1- Black(-)

Pin#2- Yellow(+)

Pin#3- Green(Tachometer/ Signal Output)

Pin#4- Blue (PWM)

Thermal Grease

Shin-Etsu 8195-4 or Equivalent Pre-Printed

Life – Continuous operating

under normal temperature

(40 °C or 104 °F)

70,000 Hours
