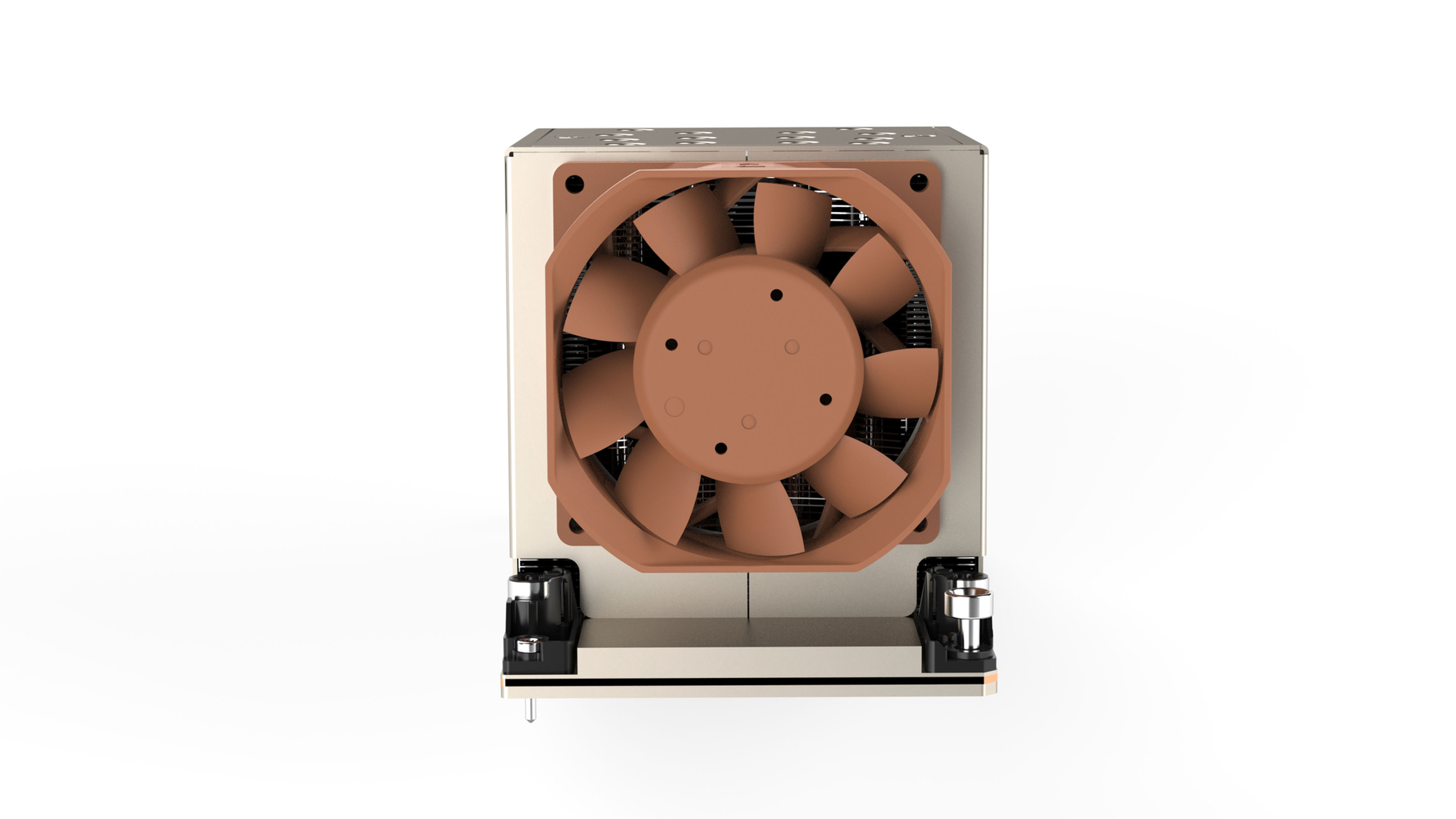

C23

CPU Support

Intel

CPU Socket

LGA 9324

Screw Type

M5

Installation Torque

13.8 kg-cm ±10% (12 in-lbf ±10%)

Solution

3U Server and up

Dimensions

153.5 × 101.5 × 112.5 mm

Weight

TBD

Material

Aluminum Fin + Vapor Chamber + Heat Pipes

Frame

PBT UL94V-0 (Coffee Colour GP)

Speed

At Duty Cycle 0~20%: 2250 ± 10% RPM

At Duty Cycle 50%: 4700 ± 10% RPM

At Duty Cycle 100%: 9000 ± 10% RPM

Bearing

Double Ball

Rated Voltage

DC 12 V

Input Power

At Duty Cycle 20%: 1.44 W
At Duty Cycle 50%: 6.0 W
At Duty Cycle 100%: 38.4 W

Air Flow

At Duty Cycle 20%: 35.52 CFM
At Duty Cycle 50%: 67.92 CFM

At Duty Cycle 100%: 130.06 CFM

Noise Level

At Duty Cycle 20%: 36.86 dBA
At Duty Cycle 50%: 52.85 dBA
At Duty Cycle 100%: 66.96 dBA

Life – Continuous

operating under normal

temperature (25 °C or

77 °F)

50,000 Hours
