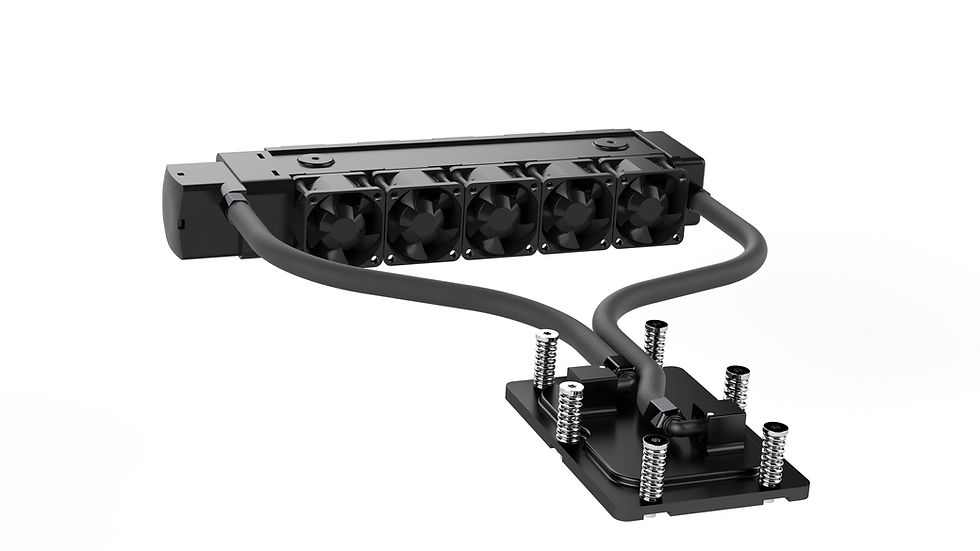

L36

L36

_______________________________



CPU SUPPORT
AMD



CPU SOCKET

AMD Socket |

SP6/TR5



APPLICATION
1U



MAXIMUM POWER

225 W

_______________________________

CPU Support

AMD® THREADRIPPER / AMD® THREADRIPPER PRO 7000 / AMD® EPYC™ Processor

CPU Socket

SP6/TR5

Solution

1U Server

Fan Dimension 40.0 x 40.0 x 28.0 mm
Speed

At Duty Cycle 0~20%: 2500±10% RPM
At Duty Cycle 50%: 6700±10% RPM
At Duty Cycle 100%: 12000±10% RPM

Bearing

2 Ball Bearing

Rated Voltage

12V

Power

At Duty Cycle 0~20%: 1.2 W
At Duty Cycle 50%: 3.0 W
At Duty Cycle 100%: 8.4 W

Air Flow

At Duty Cycle 0~20%: 5.175 CFM
At Duty Cycle 50%: 13.869 CFM
At Duty Cycle 100%: 24.840 CFM

Noise Level

At Duty Cycle 0~20%: 18.74 dBA
At Duty Cycle 50%: 40.15 dBA
At Duty Cycle 100%: 52.80 dBA

Air Pressure

At Duty Cycle 0~ 20%: 1.39 mm-H2O
At Duty Cycle 50%: 9.98 mm-H2O
At Duty Cycle 100%: 32.01 mm-H2O

Lead Wire Pin Out

Pin1- (-)
Pin2- (+)

Pin3- (Tachometer output)

Pin4- (PWM Control)

Water Pump

Stand-alone Water Pump in flow rate 1.7 Liter Per Minute

*All product specifications and product images are subject to change without notice.
