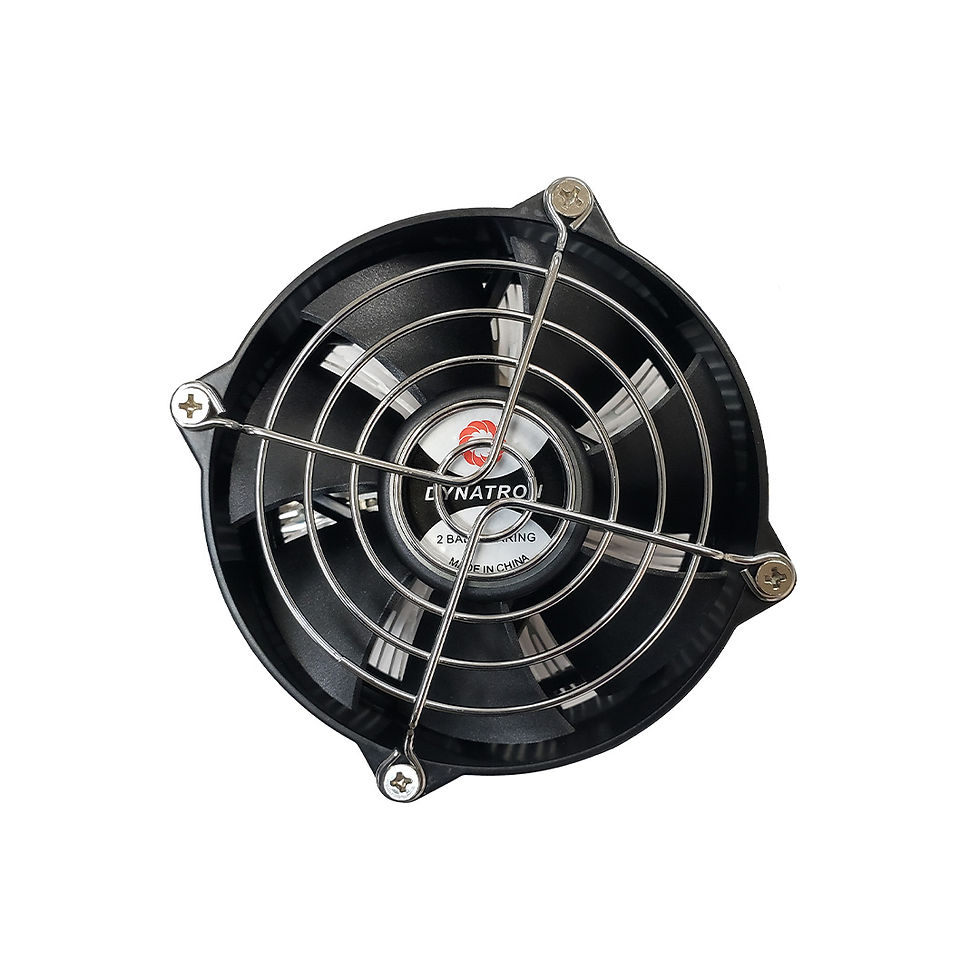

Q12

Q12

_______________________________



CPU SUPPORT
Intel



CPU SOCKET

LGA1851/1700



APPLICATION
3U & UP



MAXIMUM POWER

125 W



_______________________________

CPU Support

Intel

CPU Socket

LGA 1700

Screw Type

M3

Installation Torque

5-7 in-lb

Solution

3U Server and Up

Dimensions

106.0 x 106.0 x 72.6 mm

Weight

480 g

Material

Aluminum Radial fin Heat Sink with Copper Core Inserted

Fan Dimension

Ø 92.0 x 25.0 mm

Speed

At Duty Cycle 20%: 1000 RPM
At Duty Cycle 50%: 1500 RPM
At Duty Cycle 100%: 3000 RPM

Power

At Duty Cycle 20%: 0.60 W
At Duty Cycle 50%: 1.20 W
At Duty Cycle 100%: 3.00 W

Air Flow

At Duty Cycle 20%: 17.86 CFM
At Duty Cycle 50%: 26.79 CFM
At Duty Cycle 100%: 53.57 CFM

Bearing

2 Ball Bearing

Rated Voltage

12V

Noise Level

At Duty Cycle 20%: 16.00 dBA
At Duty Cycle 50%: 20.93 dBA
At Duty Cycle 100%: 35.98 dBA

Air Pressure

At Duty Cycle 20%: 0.480 mm-H2O
At Duty Cycle 50%: 1.070 mm-H2O
At Duty Cycle 100%: 4.290 mm-H2O

Lead Wire Pin Out

Pin#1- Black(-)

Pin#2- Yellow(+)

Pin#3- Green(Tachometer/ Signal Output)

Pin#4- Blue (PWM)

Life – Continuous operating

under normal temperature

(40 °C or 104 °F)

70,000 Hours

*All product specifications and product images are subject to change without notice.
