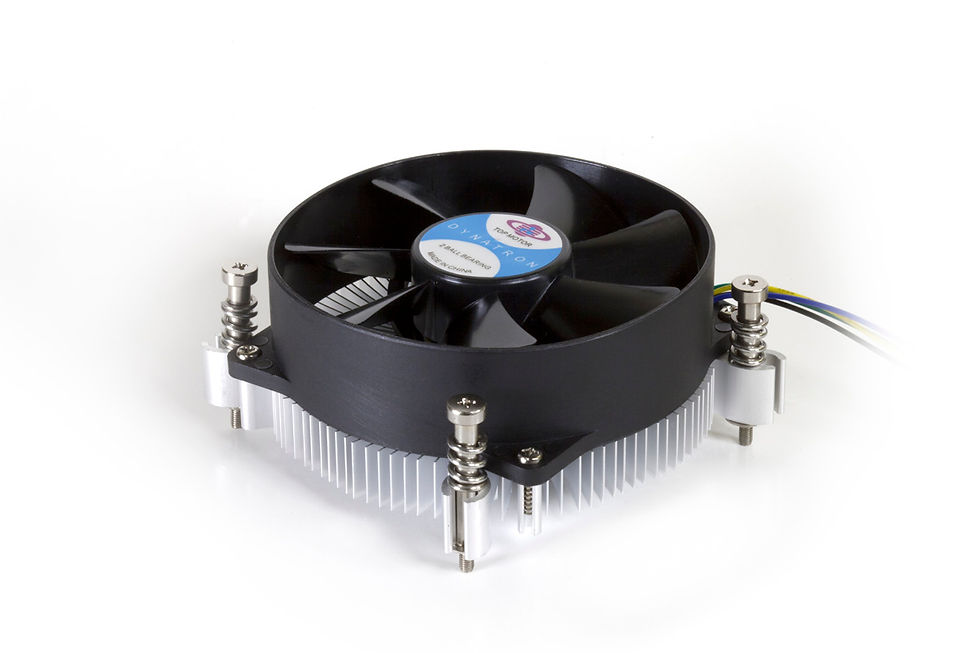

K5

Recommend for Intel® 3rd. Generation Core™ i3 / i5 / i7 Desktop Processors, Socket LGA1155. Previous Generation Core™ i3 / i5 / i7 Desktop Processors, Socket LGA1156. Active Cooler for Chassis Height 1.5U & Up ( > 2.7 Inch ). Support CPU Power up to 77 Watts.

CPU Support
CPU Socket
APPLICATION
  • Additional Information

    CPU Socket

    LGA1155 l LGA1156

    CPU Support

    Intel

    Solution

    1.5U Server, mini-ITX

    Dimensions

    92.0x92.0 x 41.0 mm

    Weight

    200g ± 5g

    Material

    Aluminum Extruded Radial Fin

    Fan Dimension

    92 x 92 x 25 mm

    Speed

    At Duty Cycle 0~20%: 1000 RPM
    At Duty Cycle 50%: 1400 RPM
    At Duty Cycle 100%: 2500 RPM

    Rated Voltage

    12V

    Bearing

    2 Ball Bearing

    Power

    At Duty Cycle 0~20%: 0.72 W
    At Duty Cycle 50%: 1.08 W
    At Duty Cycle 100%: 3.6 W

    Air Flow

    At Duty Cycle 0~20%: 14.98 CFM
    At Duty Cycle 50%: 29.90 CFM
    At Duty Cycle 100%: 46.96 CFM

    Noise Level

    At Duty Cycle 0~20%: 14.70 dBA
    At Duty Cycle 50%: 18.50 dBA
    At Duty Cycle 100%: 29.85 dBA

    Air Pressure

    t Duty Cycle 0~20%: 0.29 mm-H2O
    At Duty Cycle 50%: 1.07 mm-H2O
    At Duty Cycle 100%: 2.98 mm-H2O

    Lead Wire Pin Out

    Lead Wire Pin Out
    Pin1- (-)
    Pin2- (+)
    Pin3- (Techometer/Signal output)
    Pin4- (PWM)

    *All product specifications and product images are subject to change without notice.
